Industrial Mini PC,8-PCB Fanless Mini PC J1900 Quad Core, 2 LAN/2×RS232 COM(Switch to 2 RS485)/HD VGA Displays, Mini Desktop Computer Support Dual Band WiFi for Industry Business,4GB RAM 64GB SSD
Product details
| Management number | 239779759 | Release Date | 2026/07/14 | List Price | US$68.00 | Model Number | 239779759 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

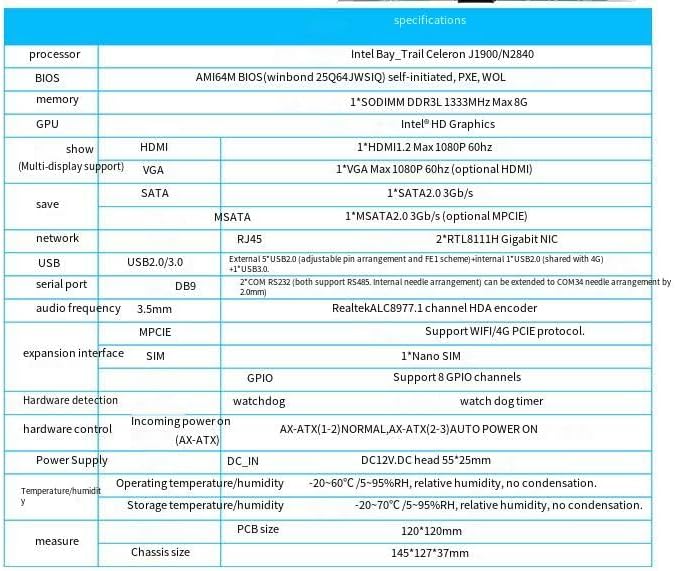

Product Highlight J1900 model: -2*RTL8111H Gigabit Network Card Chip -5*USB2.0,1*USB3.0,internal 1*USB2.0 (shared with 4G), 2*COM RS232 (both support RS485. Internal needle arrangement) can be extended to COM34 needle arrangement by 2.0mm). -1*SODIMM DDR3L 1333MHz Max 8G --Support two storage: 2*SATA, 1*SATA2.0 3Gb/s;1*MSATA2.0 3Gb/s (optional MPCIE). -Support 1xHDMI and 1xVGA Dual display -WiFi : Support WiFi/4G module Power Supply: DC 12V(2.5 55*25mm) Operating temperature/humidity: -20~60℃ /5~95%RH, relative humidity, no condensation. Temperature/humidity Storage temperature/humidity: -20~70℃ /5~95%RH, relative humidity, no condensation. PCB size 120*120mm ;measure Chassis size 145*127*37mm -Fanless system without cooling fan, noiselessness and durability fit for industrial grade field, work as long as 7x24 hours. The fanless design not only provides a quiet working environment, but also improves system reliability and stability and reduces maintenance problems caused by fan failure. It is ideal for application environments that require long-term operation and low maintenance costs select.
- ◆Powerful Celeron J1900 Processor: J1900 Processor, 4 Cores 4 Threads, 2M Cache, Max Turbo Frequency 2.41 GHz, TDP 10 W. Compatible with OPNsense, Linux, Windows，ESXI, OpenWrt and other systems. Press "Delete" key to enter BIOS setup, supports Auto Power On, Wake On Lake, GPIO, PXE
- 【◆1GbE LAN: Mini Router PC with 2*Realtek RTL8106E/RTL8111H network card chip full UDE 1000M with filter connector.Soft Router can monitor network data, improve network security, powerful and widely used.Support WiFi+4G module
- ◆DDR3L Memory & Large Storage Capacity: Firewall box computer with 1 x DDR3L SO-DIMM memory 1333MHz, 1*SATA2.0 3Gb/s;1*MSATA2.0 3Gb/s (optional MPCIE).
- ◆UHD Graphics & Dual Display: J1900 processor integrated UHD Graphics, HD and VGA dual display interfaces support 4K@60Hz.
- ◆Rich interfaces: 2 x1000M Realtek LAN,1 xUSB3.0, 5 xUSB2.0, HDMI,VGA,AUDIO,2 RS232 COM supports data storage and system boot.8-layer PCB board with guaranteed quality.
| ASIN | B0F9YCQW9D |
|---|---|
| Brand | UDPTCP |
| RAM Type | DDR3 SDRAM |
| Model Name | CX-J1900-2C-2L |
| Manufacturer | UDPTCP |
| Memory Speed | 1333 MHz |
| Model Number | CX-J1900-2C-2L |
| Video Output | HDMI |
| BuiltIn Media | Water Cooling |
| Cooling Method | FAN |
| Processor Brand | Intel |
| Processor Count | 1 |
| Processor Speed | 2 GHz |
| Total Usb Ports | 6 |
| Video Processor | Intel |
| CPU Model Number | J1900 |
| Operating System | Windows |
| Processor Series | Celeron |
| Processor Socket | FCBGA1170 |
| Graphics Ram Type | L2 cache |
| Hardware Interface | Ethernet, HDMI, USB, VGA |
| Memory Clock Speed | 1333 GHz |
| Hard Disk Interface | Serial ATA |
| Graphics Coprocessor | Intel UHD Graphics |
| Graphics Description | Integrated |
| HumanInterface Input | Mouse |
| RAM Memory Installed | 4 GB |
| Warranty Description | One year warranty |
| Hard Disk Description | SSD |
| RAM Memory Technology | DDR3 |
| Memory Slots Available | 1 |
| CPU Model Speed Maximum | 2.41 GHz |
| Graphics Card Interface | Integrated |
| Memory Storage Capacity | 64 GB |
| Ram Memory Maximum Size | 8 GB |
| Specific Uses For Product | Everyday Use |
| Display Resolution Maximum | 3840x2160 |
| Total Number of HDMI Ports | 1 |
| Number of Component Outputs | 2 |
| Personal Computer Design Type | Mini PC |
